| Specification | Details |
|---|---|
| Wavelength | 1470nm |
| Max Power | 12W |
| Display/Control | 7" HD vivid Touch-Screen/Smart |
| Aiming Beam | OS 650nm < 5mW |
| Fiber Connection | Medical fiber: 400µm and 600µm with standard SMA905 connector |
| Operating Modes | Continuous Wave (CW) / Pulsed |
| Power Supply | 18VDC 5A |
| Battery Capacity | 3350mAh |
| Dimensions (L*W*H) | 26cm (L) * 12.5cm (W) * 20cm (H) |
Benefited from the excellent capabilities in laser optics, laser electronics and heat management, PIOON is proudly introduce you the S1 surgery laser with 1470nm. It has increasingly become the most suitable wavelength for surgery such as PLDD, EVLA, Proctology. Bring this laser to you is exactly what PIOON specializes in.
Standing apart in terms of industrial design and craftsmanship, S1 1470nm surgery laser delivers a high power 12W. It enables high precision cutting and ablation due to unparalleled water absorption.

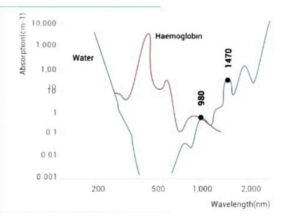

Targeting water as the chromophore to absorb the laser energy, the S1 1470nm is a water-specific laser. The wavelength of the 1470nm laser is absorbed by cellular water 40 times better than the wave of a 980nm laser. Besides, it has a high water absorption coefficient and is readily absorbed by oxyhemoglobin, allowing for low-char hemostatic tissue removal.
